Danfoss

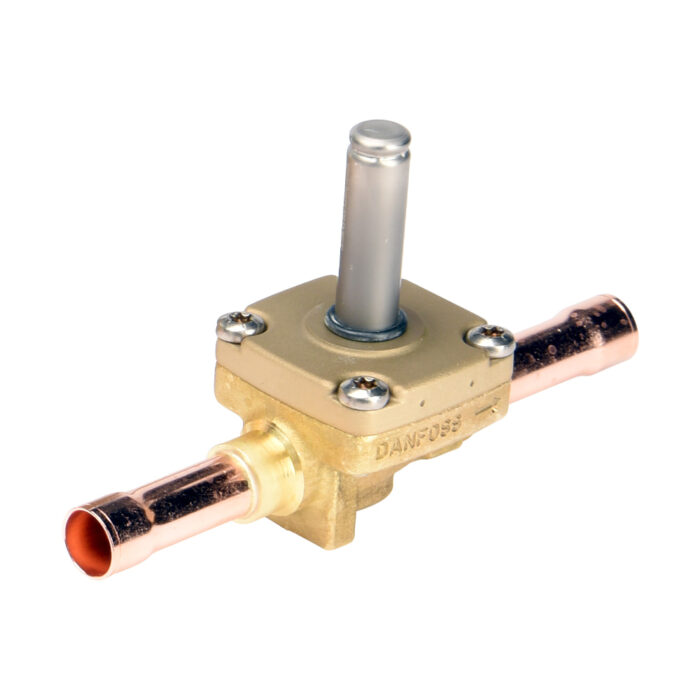

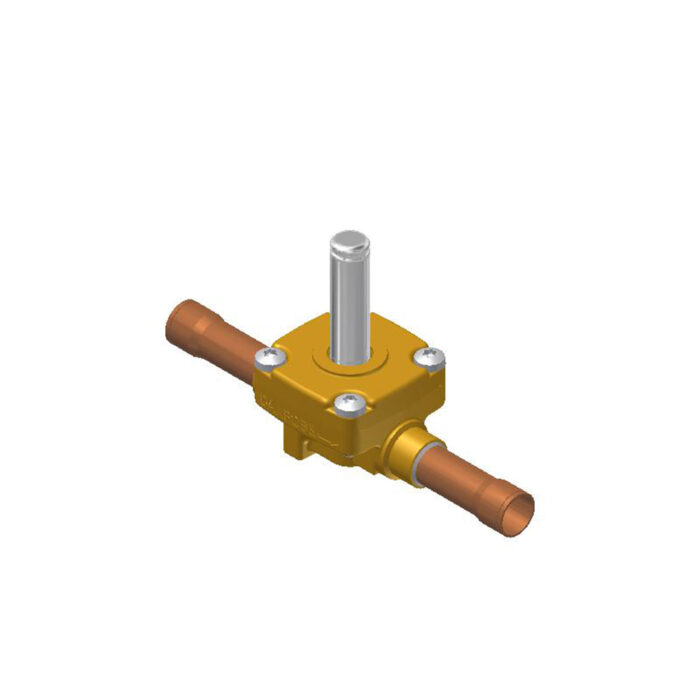

Solénoïde valve, EVR 15, Solder, ODF, Function: NC

د.ت0.00

Kv value [m³/h]: 3.300

Manual operation option: No

Packing format: Industrial pack



Add to wishlist
SKU: 032L5089 Categories: ,
Description
Gross weight 0,86kg
Net weight 0,61 kg
Actuator system [mm] 13.5 mm
Ambient temperature -40 – COIL DEPENDEND
Approval UL
EAC
Coil No
Cv value [gal/min] 3.8 gal/min
Direction Straightway
Function NC
Identical product 032L1228
Inlet connection type SOLDER, ODF
Inlet size [mm] 16 mm
Kv value [m³/h] 3.3 m³/h
Manual operation option No
Max. Working Pressure [bar] 45.2 bar
Max. Working Pressure [psig] 655 psig
MaxOPD[bar] 10W AC 38 bar
MaxOPD[bar] 20W DC 20 bar
MaxOPD[bar] coil BJ/BX 38 bar
MaxOPD[psi] 10W AC 550 psi
MaxOPD[psi] 20W DC 290 psi
MaxOPD[psi] coil BJ/BX 550 psi
Medium temperature range [°C] [Max] 105 °C
Medium temperature range [°C] [Min] -40 °C
EAN 5702428942447
Medium temperature range [°F] [Max] 221 °F
Medium temperature range [°F] [Min] -40 °F
MinODP [bar] 0.03 bar
MinODP [psi] 0.44 psi
MOPD[bar/psi] COIL DEPENDEND
Orifice size [mm] 14 mm
Outlet connection type SOLDER, ODF
Outlet size [mm] 16 mm
Packing format Industrial pack
Parts Program name EVR
Product accessories Solenoid valve accessories
Product family name EVR v2
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 8 pc
REACH Candidate List substances >0.1% Lead (CAS no. 7439-92-1)
Refrigerants R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R444B, R447A, R449B, R452B, R454B, R454C, R455A, R463A, R513A, R513B, R515A, R515B, R516A, R442A, R447B, R512A, R454A, R507A
Serviceable Solenoid valve spare parts
Type EVR 15
Type designation Solenoid valve, Solder
UL approved refrigerants R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A
Valve operation SERVO-DIAPHRAGM
